Gecko’s new Y series that boasts impressive features and the most advanced technology in convivial, reliable, safe and long lasting control systems that fit all spa models and benefit all spa users.


dimensions & specs

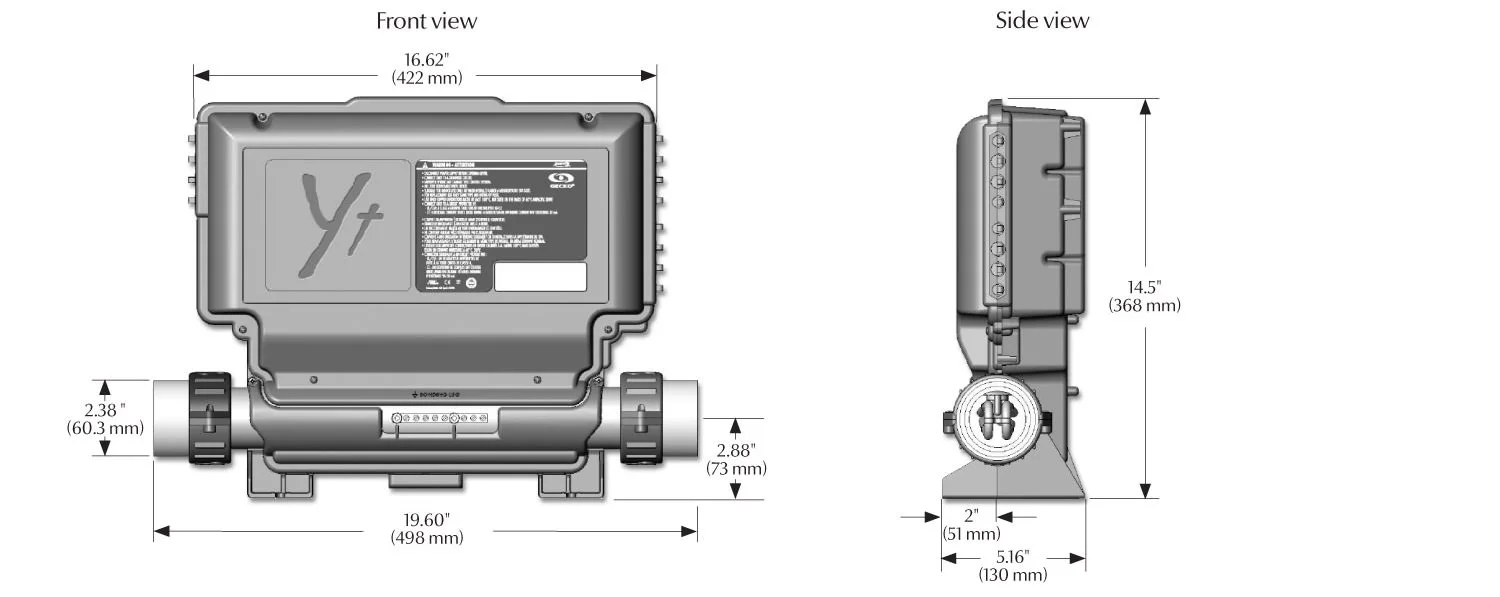

in.yt dimensions

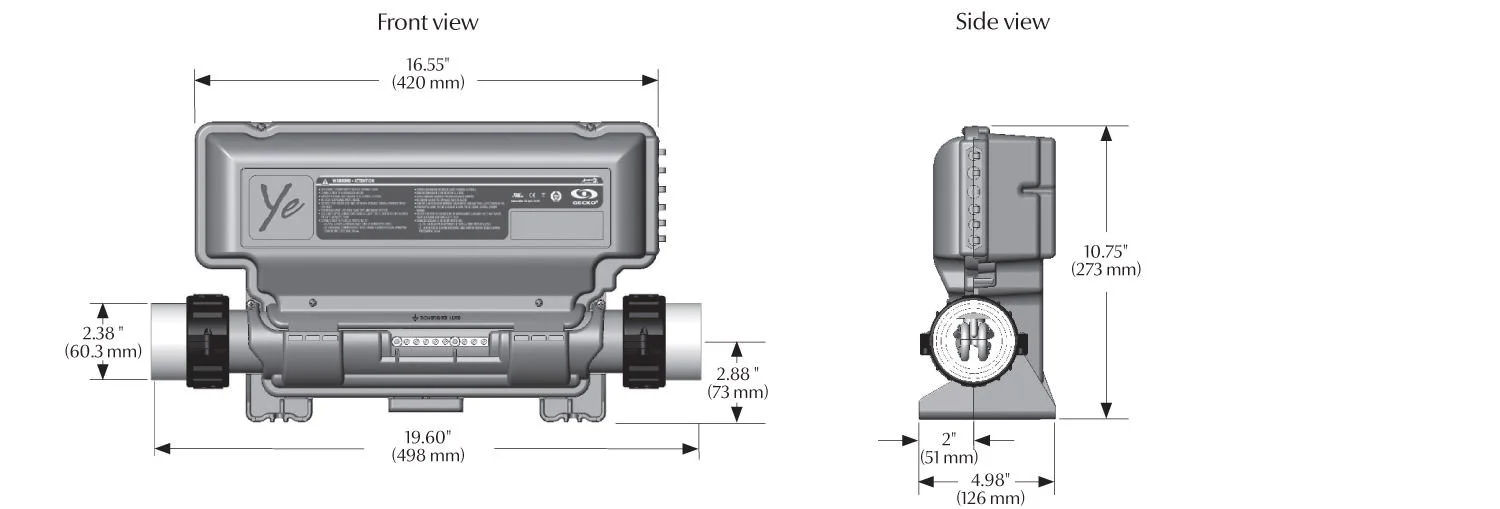

in.ye dimensions


in.yt & in.ye specs




Environmental:

  • Operating temperature: 32˚F (0˚C) to 136˚F (58˚C)
  • Storage temperature: -13°F (-25°C) to 185°F (85°C)
  • Humidity: up to 85% RH, non condensing
  • IPx5 level of waterproofing

Mechanical:

in.ye

  • Weight: up to 9.7 lb (4.4 kg)
  • Dimensions: (W x H x D) 19.60" x 10.75" x 4.98"
    (497 x 273 x 126 mm)

in.yt

  • Weight: up to 12 lb (5.45 kg)
  • Dimensions: (W x H x D) 19.60" x 14.5" x 5.1"
    (497 x 368 x 130 mm)






Y series North American electrical specifications:

Input rating:

  • 120/240 V nominal (+5/-10%)
  • 60 Hz, (2 lines required with neutral) 48 A Max.

or (in.ye-3 only):

  • 120 V nominal only (+5/-10%)
  • 60 Hz, (single line with neutral) 16 A Max.

Heat.wav rating:

  • Voltage: 120 or 240 V, 60 Hz
  • Wattage: 4 kW at 240 V, 1 kW at 120 V
    (optional 5.5 kW et 240V)
  • Flow rate: Minimum of 18 GPM (68.1 LPM) is required



UL / CSA standards:

  • UL 1563 Sixth Ed. (2012)
  • UL File: E182156
  • CAN/CSA C22.2 No. 218.1-13 (2013)

Y series European electrical specifications:

Input rating:

  • 230/240 V nominal (+5/-10 %)
  • 50 Hz, (3 lines required with neutral), three-phased system 16 A Max per phase.

or

  • 230/240 V nominal (+5/-10 %)
  • 50 Hz, (2 lines required with neutral), dual-phase system 20 A Max per phase.

or

  • 230/240 V nominal (+5/-10 %)
  • 50 Hz, (1 line required with neutral), single-phase system 48 A max.

Heat.wav rating:

  • Voltage: 230 V, 50 Hz
  • Wattage: 3.8 kW at 230 V
  • Flow rate: Minimum of 18 GPM (68.1 LPM) is required



European and international standards:

  • IEC 60335-1 : 2010
  • IEC 60335-2-60 : 2002, A1 : 2004, A2 : 2008
  • EN 60335-2-60 : 2003, A1 : 2005, A2 : 2008, A11 : 2011, A12 : 2010
  • EN 60335-1 : 2012
  • EN 62233 : 2008
  • EN55014-1
  • EN55014-2
  • EN61000-3-2
  • EN61000-3-3
