Gecko’s new Y series that boasts impressive features and the most advanced technology in convivial, reliable, safe and long lasting control systems that fit all spa models and benefit all spa users.


dimensions & specs



in.yj dimensions

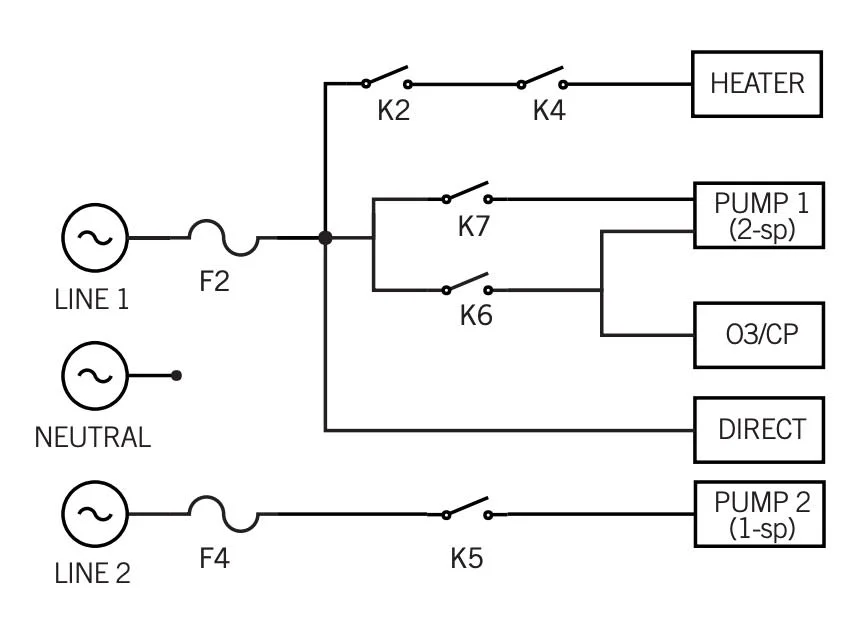

Dual-phase system configuration

in.yj European and international (CE/AS/NZS)
Heater, P1 (2sp), O3/CP, Direct on L1, P2 (1sp) on L2


System configuration

in.yj3 North American


in.yj specs




Model:

  • in.yj-2-V3: 2 outputs

  • in.yj-3-V3: 3 outputs

Environmental:

  • Operating temperature: 32°F (0°C) to 140°F (60°C)

  • Storage temperature: -13°F (-25°C) to 185°F (85°C)

  • Humidity: up to 85% RH, non condensing

  • Level of waterproofing:
    IPx5 for CE/AS/NZS & CSA Enclosure #2

Mechanical:

in.yj

  • Dimensions: (W x H x D)
    12.08" x 7.38" x 3.74" (307 x 187 x 95 mm)

  • Weight: 3.1 lb (1.41 kg)

heat.wav

  • Dimensions: (W x H x D)
    19.58" x 4.94" x 3.92" (497 x 125 x 100 mm)

  • Weight: 4.65 lb ( 2.1 kg)







in.yj North American electrical specifications*

Input rating (in.yj-3):

  • 120/240 V nominal (+5/-10%), 60 Hz
    (2 lines required with neutral) 40 A Max.

Input rating (in.yj-2):

  • 120/240 V nominal (+5/-10%), 60 Hz
    (2 lines required with neutral) 32 A Max.
    or:

  • 120 V nominal only (+5/-10%), 60 Hz
    (single line with neutral) 16 A Max.

heat.wav rating:

  • Voltage: 120 or 240 V, 60 Hz

  • Wattage: 4 kW at 240 V, 1 kW at 120 V

  • Flow rate: Minimum of 18 GPM (68.1 LPM) is required



North American standards:

  • UL 1563

  • UL File: E182156

  • CAN/CSA C22.2 No. 218.1 -13

  • FCC part 15 (2018) subpart B

  • ICES-003 (2016)


* Certain current limits may apply. Please talk to your customer service representative for more information.

in.yj European and international (CE/AS/NZS)
electrical specifications*

Input rating (in.yj-3):

  • 220-240 V nominal (+5/-10%), 50-60 Hz, (1 line required with neutral), single-phase system 40 A Max.

    or:

  • 220-240 V nominal with neutral (+5/-10%), 50-60 Hz, (2 lines required with neutral), dual-phase system
    20 A Max. per phase.

Input rating (in.yj-2):

  • 220-240 V nominal (+5/-10%), 50-60 Hz, (1 line required with neutral), single-phase system 32 A Max.

heat.wav rating:

  • Voltage: 220-240 V, 50/60 Hz

  • Wattage: 4 kW at 220-240 V

  • Flow rate: Minimum of 18 GPM (68,1 LPM) is required



European and international standards (CE/AS/NZS):

  • IEC 60335-2-60:2017

  • IEC 60335-1:2010 + AMD1:2013 + AMD2:2016

  • AS/NZS 60335.2.60:2006 • AS/NZS 60335.1:2011 + A1:2012 + A2:2014 + A3:2015

  • EN 55014-1 (2017)

  • EN 55014-2 (2015)
